Bitumen Storage Container

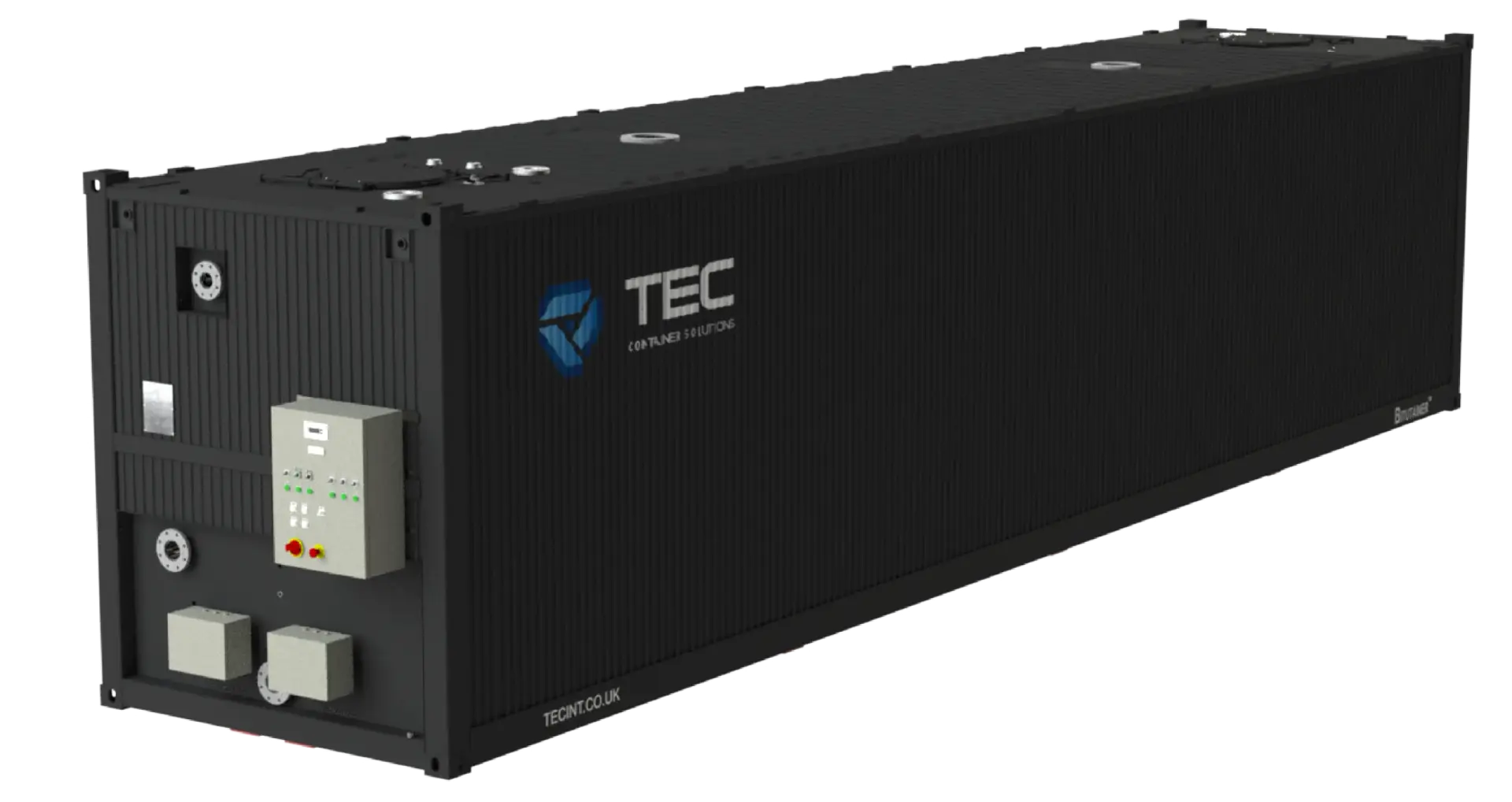

High Capacity Storage Bitutainer™

Information

The High Capacity Storage Bitutainer™ is a versatile double-walled bitumen storage solution, with innovative design features to enhance the tank’s storage capacity. Our 40ft bitumen storage container provides secure and reliable storage for a range of products, with the opportunity to utilise a single tank as a standalone storage solution, or as part of a fully bespoke storage facility.

Looking for a bitumen storage tank with greater thermal efficiency over greater storage capacity? Find out more about our High Performance Storage Bitutainer™ here.

For further information about tank heating options, visit our heating options range here.

Suitable for the temporary storage of bitumen, bitumen emulsions, PMBs and heavy fuel oils.

Mobile and Versatile

TEC’s storage Bitutainers™ are easy to transport and relocate as required, simply being transported as standard 40ft containers.

Modular and Scalable

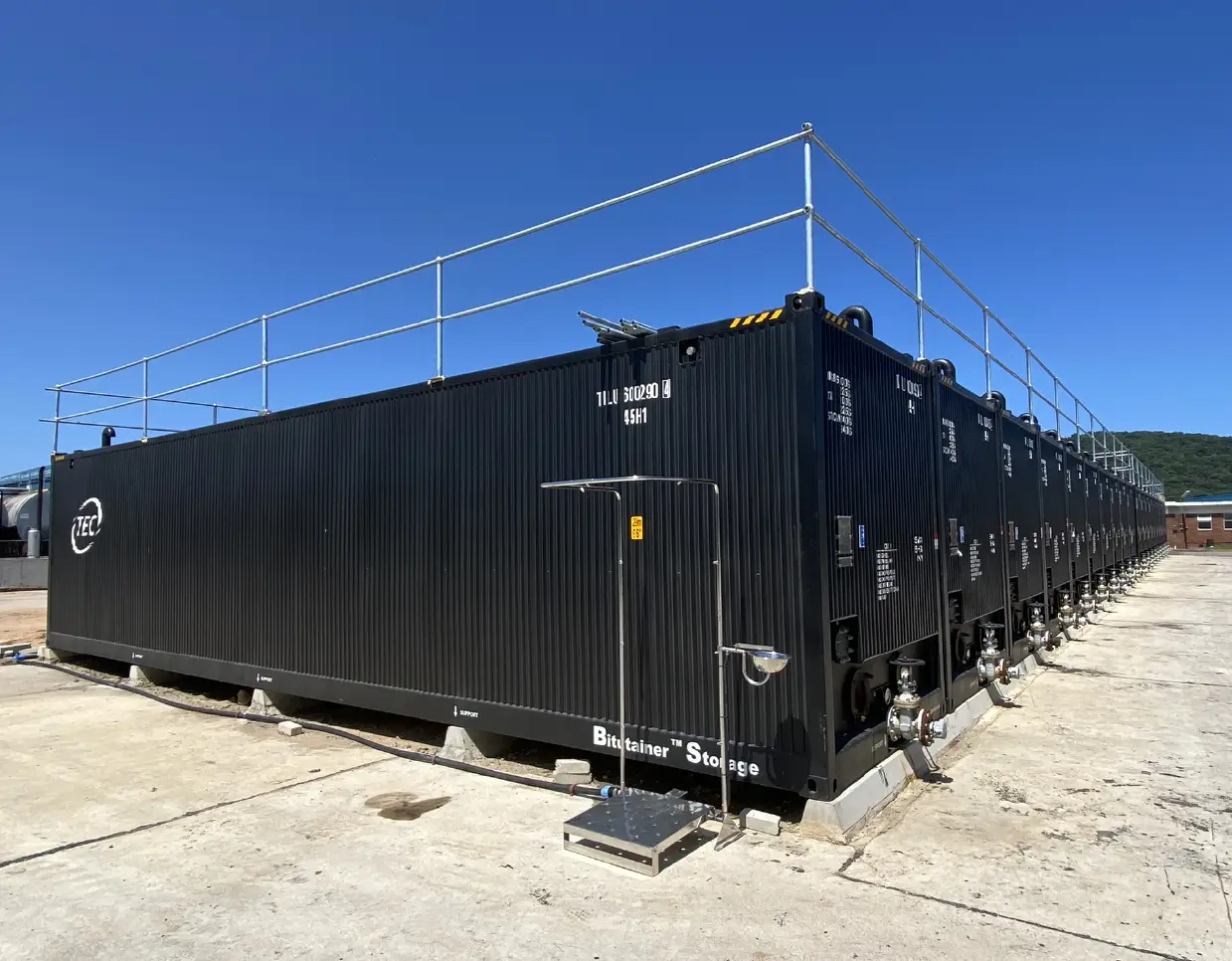

The full range of storage Bitutainers™ can be utilised in the Bitutainer Storage Facility, providing a fully scalable, modular design concept to suit your bespoke project specifications. From 60t to over 5,000t, the storage capacity can easily be increased with the addition of more tanks making it an ideal solution for buffer and independent storage.

Easy to Install

With no need for large-scale civil works or bunding, complemented by the prefabricated nature, these bitumen storage containers are quick and easy to install, with low installation costs compared to regular fixed storage tanks.

Self-Contained

The double-walled design and sealed cavity provide increased reliability, damage protection and heat insulation, removing the need for costly bund walls associated with standard large-scale bitumen storage facilities.

Key features

50-60,000 litre capacity
Enhanced internal tank size for increased storage capacity
High-performance factory-fitted heating tubes
Double-walled design provides secondary containment to meet storage standards
Modular design and simple pipework manifolds ensuring scalability as storage requirements change

Ratings

Max GW	75,000kg
Payload	65,000kg
Tare Wt.	<10,000 Kgs

Measures

Length	12,192 mm (40’)
Width	2,438 mm (8’)
Height	2,896 mm (9’6”)
