Bitumen Transport Container

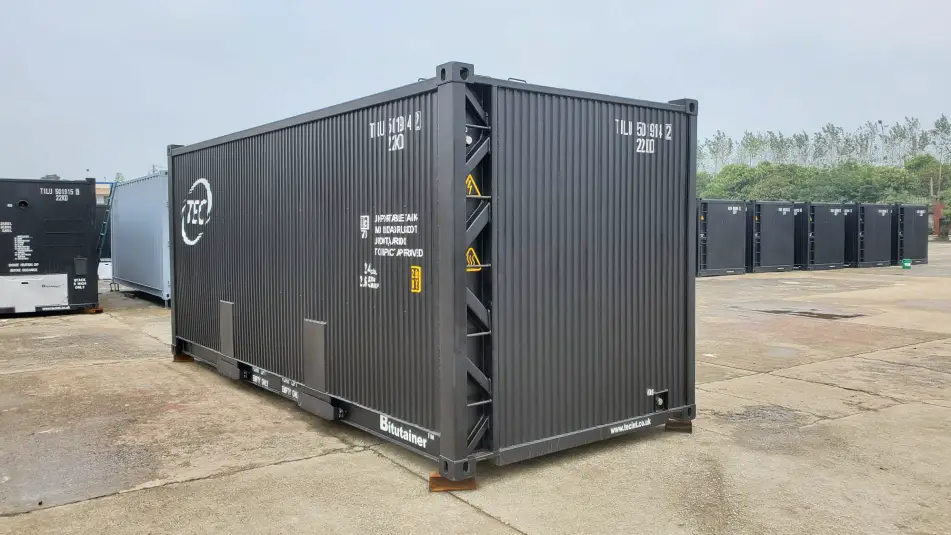

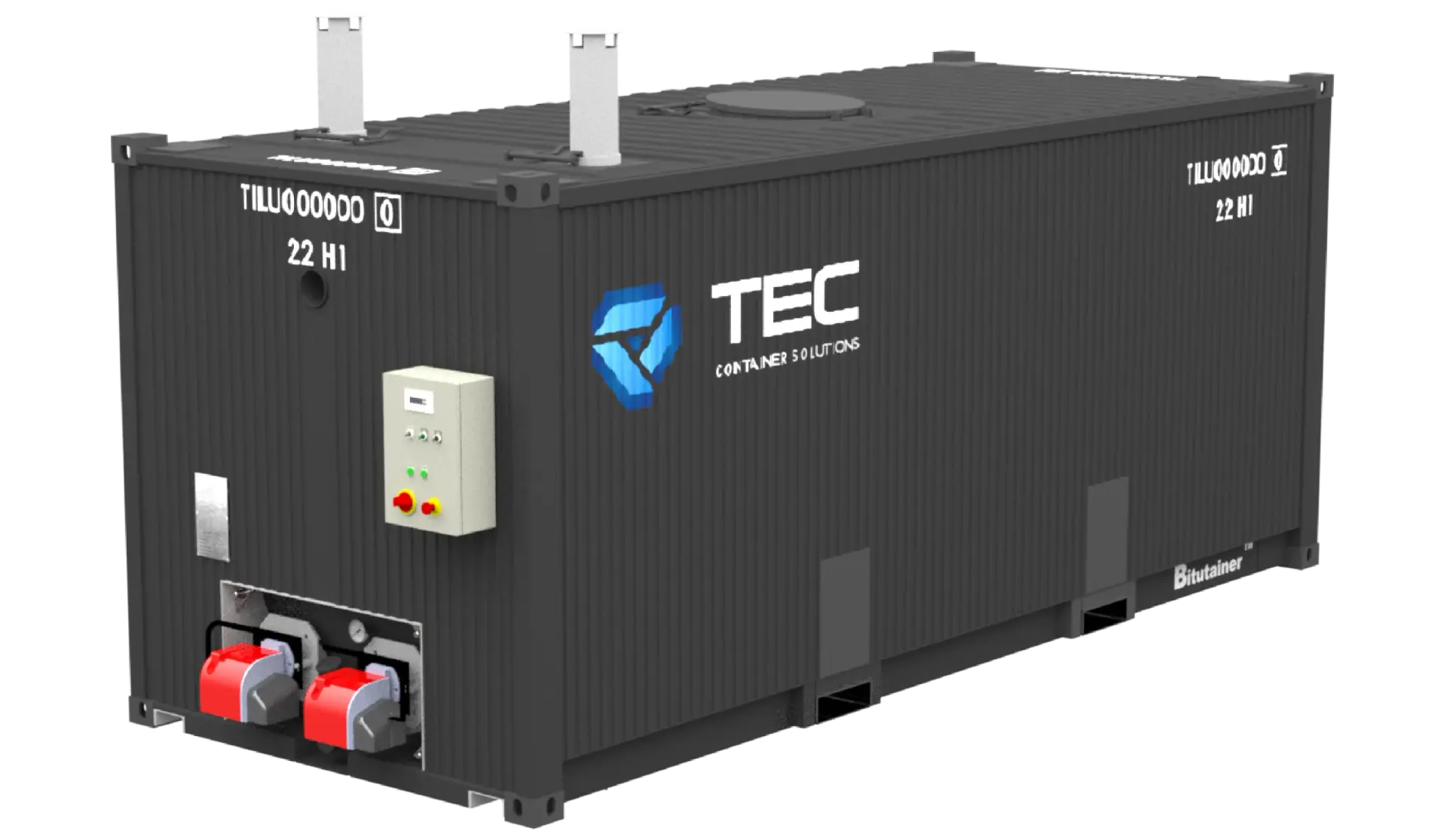

IMDG Bitutainer™

Information

The IMDG Bitutainer™ is a fully IMDG-compliant double-walled bitumen container, with ADR/RID and US DOT/TC Approvals. This bitumen container has a T3 rated internal pressure vessel, coupled with a protective outer wall and impact protection plates, ensuring the IMDG Bitutainer™ is stronger and more durable than standard ISO tank designs. With options for different carrying capacities, the IMDG Bitutainer™ resolves issues with over the road weight restrictions and port facility limitations.

For further information about tank heating options, visit our heating options range here.

Suitable for the storage and transportation of hot liquid bitumen, bitumen emulsions, bitumen cutbacks, light and heavy fuel oils.

Bespoke Storage Solutions Background

Key features

  • Allows for hot bitumen transport via road, rail and ship internationally – making it the most versatile Bitutainer
  • Both 22,000 and 24,000 litre carrying capacities available
  • ISO 1496 Part 3 “Tank Containers” Rated
  • Double-walled bunded design for safe transport and for use as an approved storage tank
  • Baffled design for partial payload transportation
  • Wide range of internal coatings available for storage and transport of range of products

Ratings

Max GW26,000kg - 30,480kg
Payload20,250kg - 23,630kg
Tare Wt.<5,750kg - <6,850kg

Measurements

Length6,058mm (20’)
Width2,438mm (8’)
Height2,591mm (8’6”)
